State of Texas Bullet-Resistant Shield Program

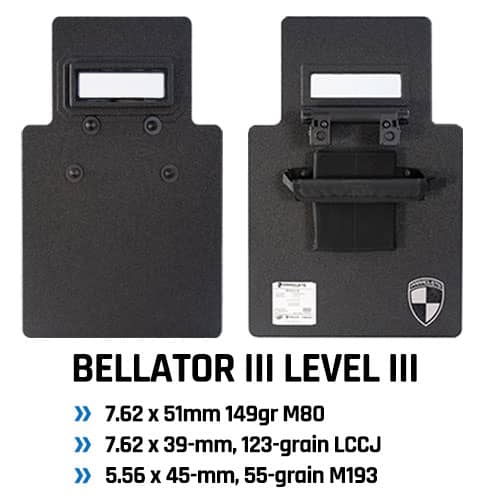

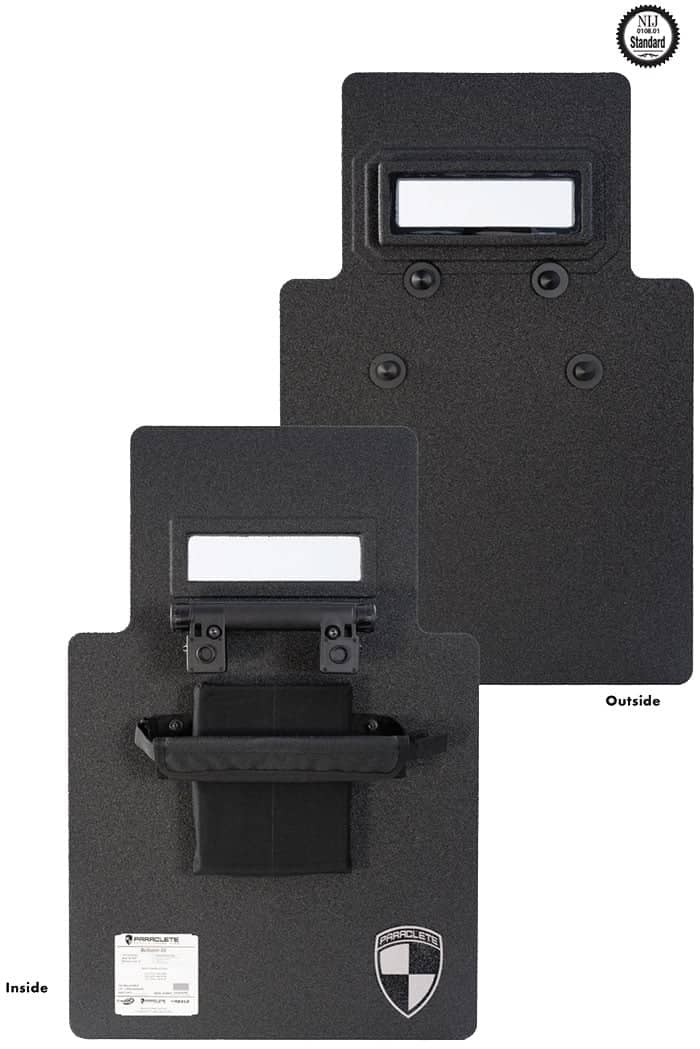

Bellator III

FEATURES

• Level III protection
• NIJ-STD-0108.01
• Weapon Mount System (WMS)
• Ballistic Material - Hybrid composite
• Two shooting platforms for accurate handgun and long-gun deployment
• Interior options:
• Stationary handle
• Tri-Grip Handle
• Unique Hook and Loop forearm strap attachment system
• View Port Reinforced on all edges for added protection
• Reinforced Bolt System for added protection
• 3” x 9” Reinforced Viewport
• Recessed Viewport to provide additional protection against abrasive contact

Size

• 20” x 30”
• 24” x 36”

Ballistic Performance

Special Threats Rounds Tested

• 7.62 x 51mm 149gr M80
• 7.62 x 39-mm, 123-grain LCCJ
• 5.56 x 45-mm, 55-grain M193

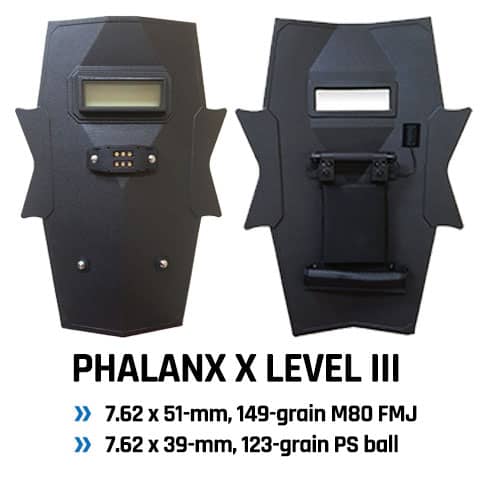

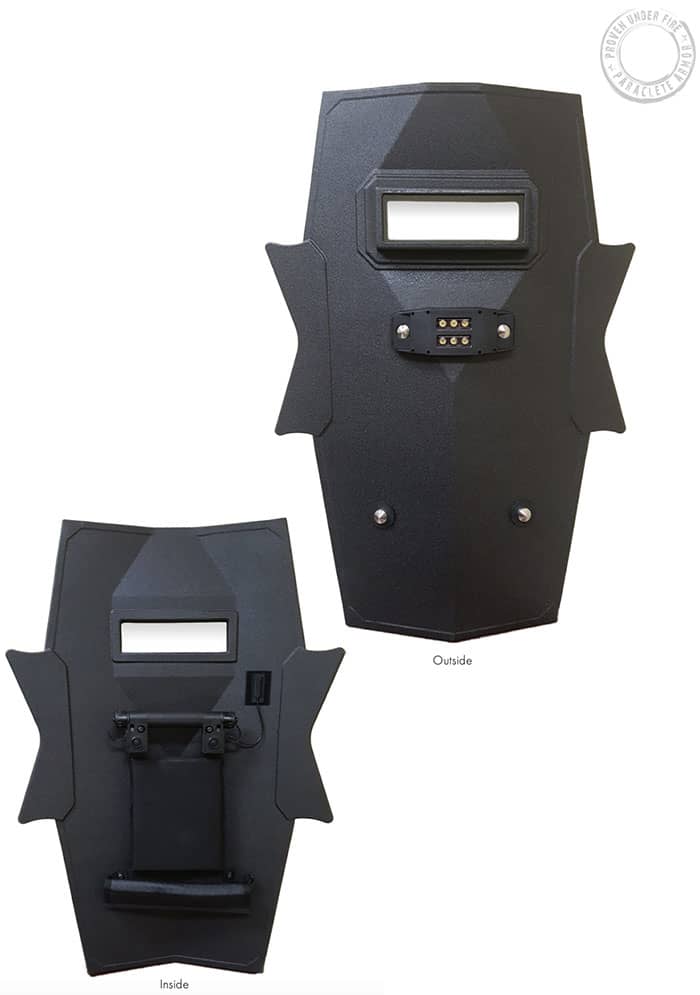

PhalanX X Level III

The Phalanx III provides level III protection. A wide, trapezoid shaped viewport provides excellent viewing capabilities while the mounted platform on each side allows the operator to position their weapon for optimum firing position.

FEATURES

• Rifle rated Level III Protection
• Components offered on the interior of the shield
• Solid handle system
• Thick high density foam pad
• Unique hook/loop fastener forearm strap attachment system
• Integrated Non-Ballistic weapon mount system
• Three positional shooting platforms

TECHNICAL SPECIFICATIONS

• Federal Standard NIJ-STD-0108.01 Level III Compliant
• Ballistic Material - Hybrid Composite
• Size is 20” x 36” (+/- ½”)
• Weight with Viewport and light do not exceed 26 lbs
• Viewport - 3” x 9”
• LED 1200 Lumens light system
• Shield thickness is 1” (+/- .1”)

Ballistic Performance

Special Threats Rounds Tested

• 7.62 x 51-mm, 149-grain M80 FMJ
• 7.62 x 39-mm, 123-grain PS ball

Options

• With or Without Viewport
• LED Light with Strobe Mode
• 1200 Lumens
• Transport Bag

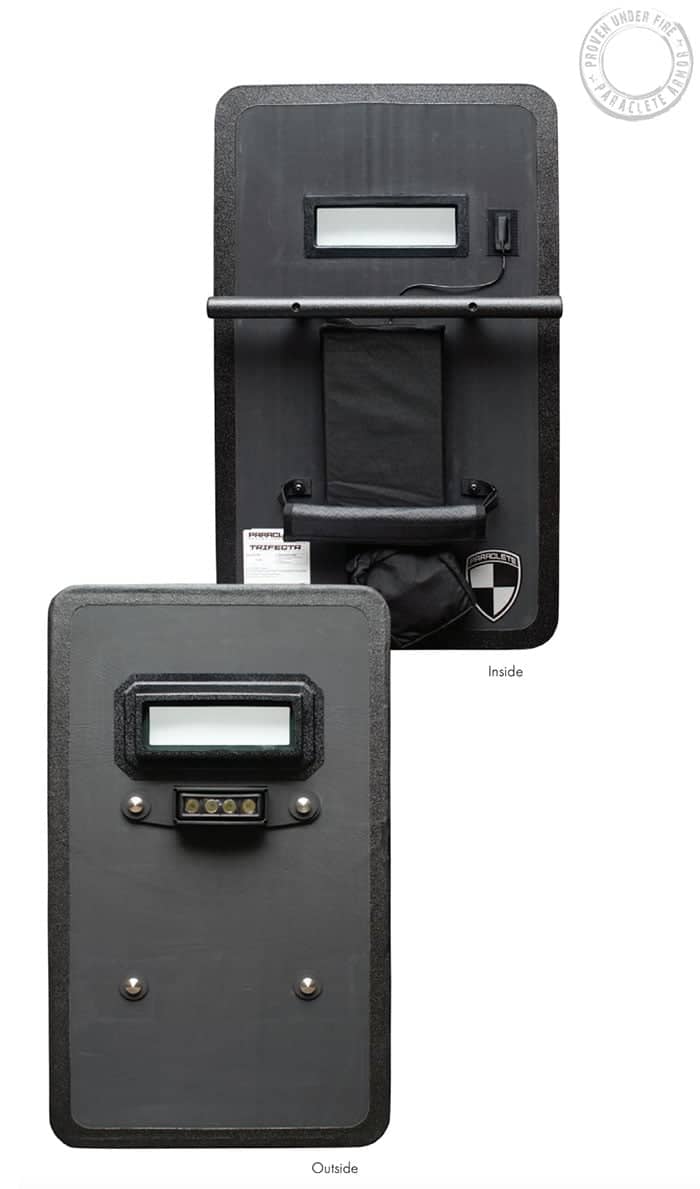

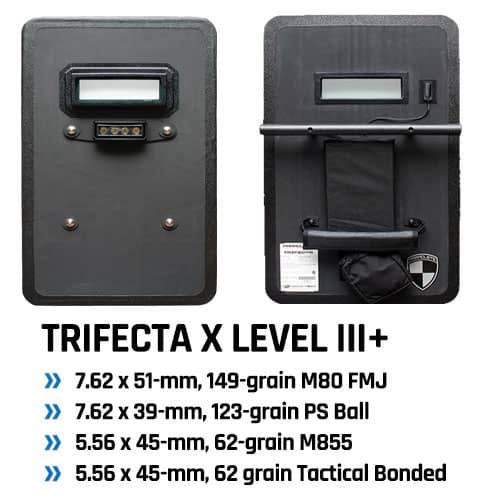

TRIFECTA X Level III

This high-performance shield has been both internally and externally validated to ballistic performance levels that meet the requirements--NIJ Level III plus.

FEATURES

• Level III+ Protection
• Components offered on the interior of the shield:
• Stationary handle
• Thick high density foam pad
• Unique hook/loop fastener forearm strap attachment system
• Federal Standard NIJ-STD-0108.01 Level III Compliant
• Ballistic Material - Hybrid Composite
• Size is 21” x 36”
• Weight with Viewport and light is less than 35 lbs
• Viewport - 3” x 9”

Ballistic Performance

Rounds defeated:

• 7.62 x 51-mm, 149-grain M80 FMJ
• 7.62 x 39-mm, 123-grain PS Ball
• 5.56 x 45-mm, 62-grain M855
• 5.56 x 45-mm, 62 grain Tactical Bonded

Options

• With or Without Viewport
• LED Light with Strobe Mode
• 1000 Lumens
• Transport Bag

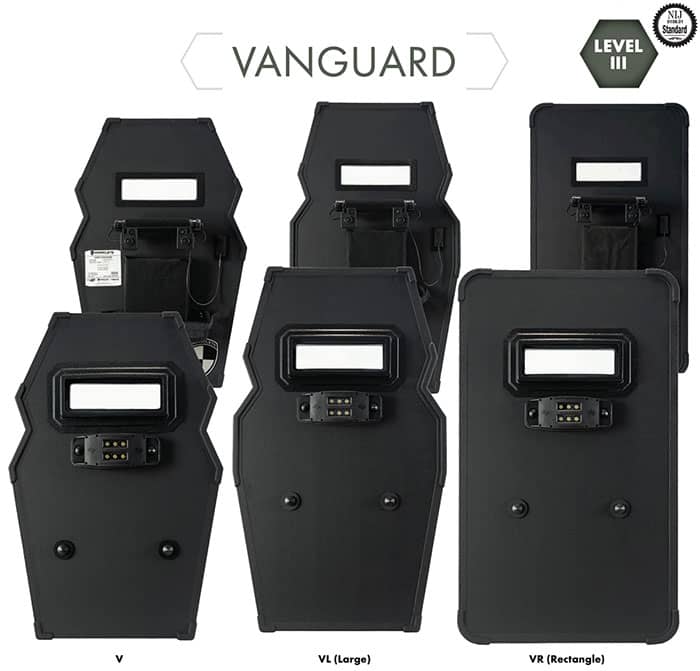

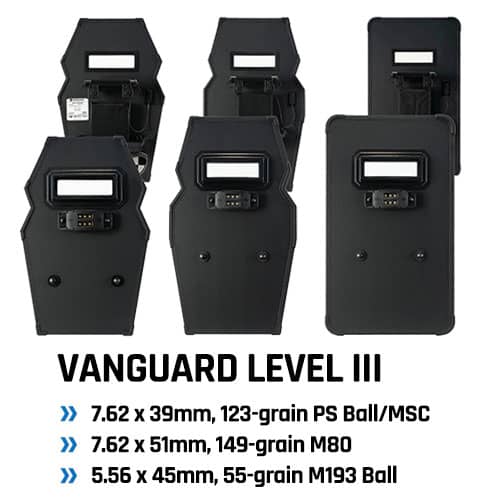

VANGUARD

This high-performance shield has been both internally and externally validated to ballistic performance levels that meet the requirements--NIJ Level III plus.

FEATURES

• Lightweight (20” x 30” with viewport) weighs only 14.8 lbs
• 3” x 9” Reinforced Viewport
• Weapon Mount System (WMS)
• Shooting platform for accurate handgun and long-gun deployment
• Solid handle system
• Thick high density foam pad
• Unique Hook and Loop forearm strap attachment system
• Reinforced Bolt System for added protection

THICKNESS = 0.4”

Ballistic Performance

Special Threats Rounds Tested

• 7.62 x 39mm, 123-grain PS Ball/MSC
• 7.62 x 51mm, 149-grain M80
• 5.56 x 45mm, 55-grain M193 Ball

V

• 20” x 30” - 14.8 lbs with viewport
• 20” x 30” - 16.1 lbs with viewport & light

VL (Large)

• 21” x 36” - 16.8 lbs with viewport
• 21” x 36” - 18.1 lbs with viewport & light

VR (Rectangle)

• 21” x 36” - 18.5 lbs with viewport
• 21” x 36” - 19.7 lbs with viewport & light
